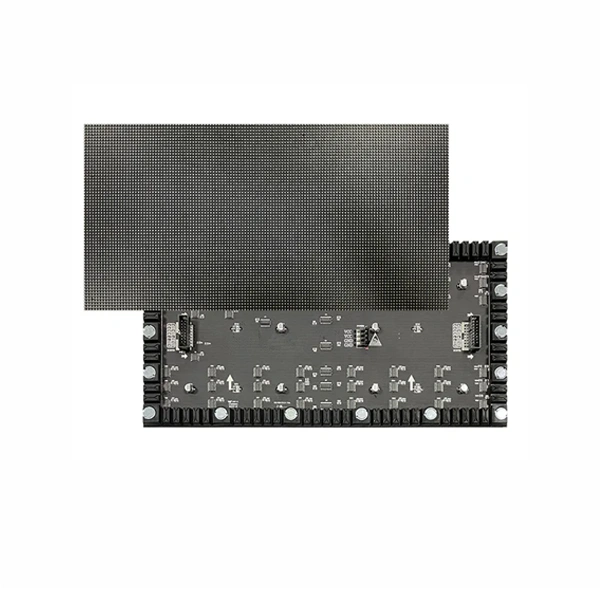

The P1.8 flexible LED screen is composed of LED pixels on a PCB with a bendable rubber casing. Traditional LED displays can only be displayed flat. But flexible LED display can be bent, suitable for creative design display, also can be curled and flipped, can be used to make cylindrical screen, ring screen, wave screen, ribbon screen, curved screen, time tunnel screen, etc. Z best viewing distance ≥ 1.8m.

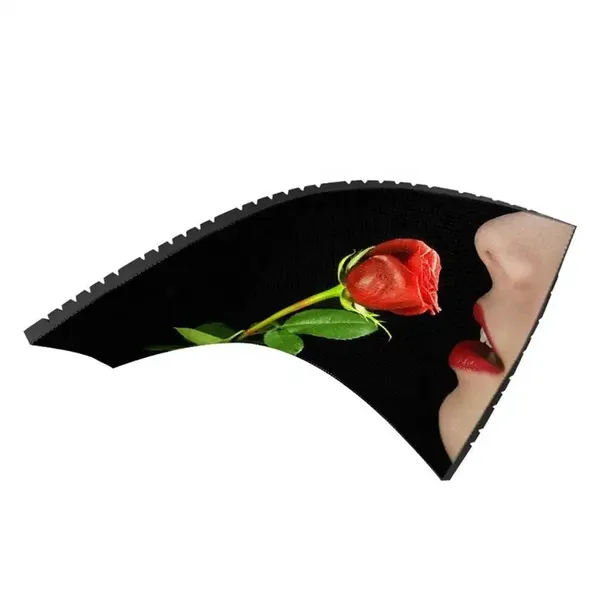

Good flexibility, high fit, and can be repeatedly bent ≥5000 times.
Flexible LED display installation method.
According to your requirements, we can design different shapes of flexible display, you just need to give us the design size and appearance drawings.
P1.83 Flexible LED display has a wide viewing angle of 170°to meet the needs of viewing at various angles.
The true & natural colors，better viewing experience.
Case

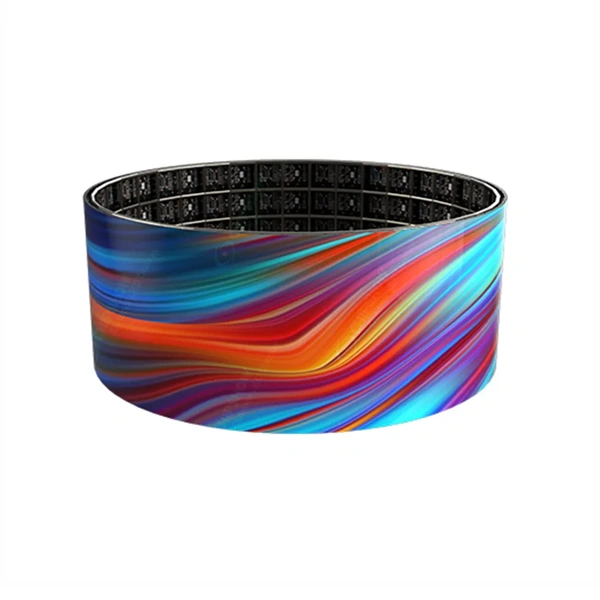

LED cylindrical screen
LED curved screen

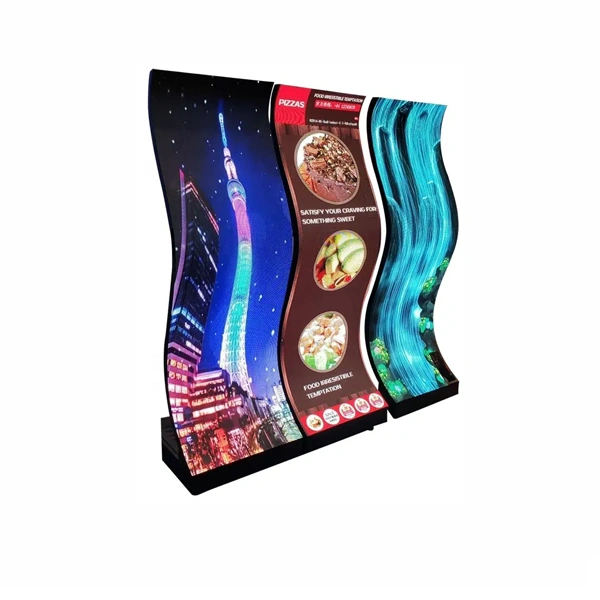

LED ribbon screen

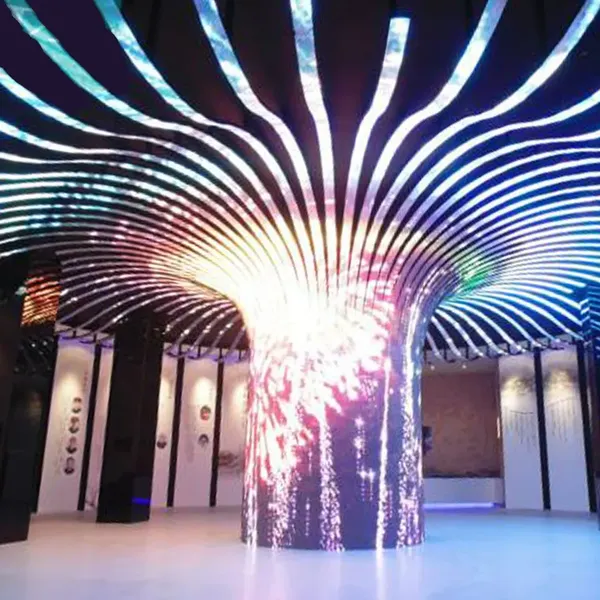

LED tunnel screen

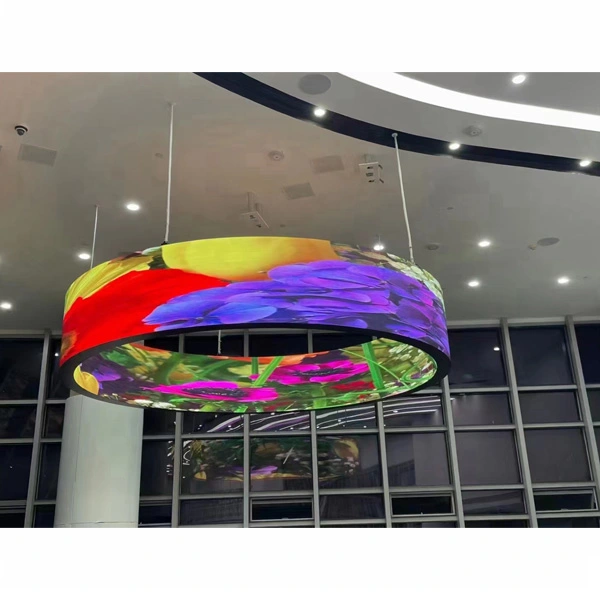

LED ring screen
LED curved screen

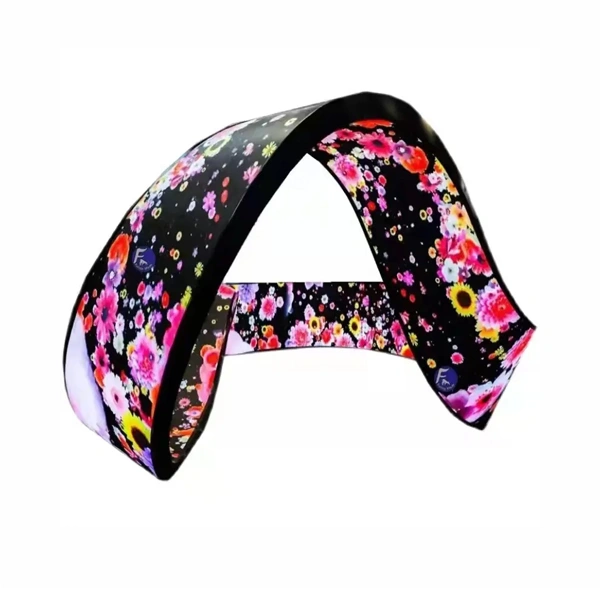

LEDMobius ring
Product parameters
Pixel Configuration | SMD1515 |
Pixel Pitch（mm） | 1.86 |
| Minimum Viewing Distance(m) | ≥1.8 |
Pixel Density（point/ m2） | 289,050 |
Module Resolution （W×H） | 172X86 |
Module Size （mm） | 320（W）×160（H） |
Modulet Weight（kg） | 0.25 |
Module Maximum power（W） | 25 |
Cabinet Material | Iron |
Service type | Front and Rear |
Brightness（CD/㎡） | 800（6500K） |
CCT（K） | 3200—9300 |
Viewing Angle（H/V） | 160/160 |
Contrast | 5000：1 |
Max. Power Consumption（W / m2） | 800 |
Middle Power Consumption（W / m2） | 150-250 |
Voltage（V | AC90〜264 |
FPS（Hz） | 50＆60 |
LED Drive Method | 1/43S |
Gray | 65536 |
Refresh Frequency（Hz） | ≥3840 |
Color Depth | 14bit |
Video Playback Funct | 2KHD，4KHD |
Work T/ H（℃/ RH） | -20 – 60/10％-85％RH |
Store T/ H（℃/ RH） | -20 – 60/10％-85％RH |
Authentication | CCC，TUV-CE，FCC |
Reasons for choosing Gtseen
Our staff has 10 years of experience in the field of LED display manufacturing. We can produce high quality and reliable LED display products for you, and we can customize the products to meet your requirements. Perfect after-sales service, for each batch of LED display, provide 5% spare parts for your order replacement. Products have passed CE RoHs, FCC certification.
Professional production workshop, standard production process.
We have module and whole screen production capacity, the product manufacturing process is fully automated to ensure stable and reliable products.
Good packaging protection for long distance transportation.
Our exported displays are packed with foam surface and wooden box, or air box, and the packaging is randomly checked for vibration test before shipment to ensure the products are delivered to you safely.
Frequently Asked Questions
Q1. Are the products customizable?
Answer: Yes, we can customize our products according to customers' requirements, you just need to provide us with project details, such as exterior shape, size, for outdoor or indoor use, fixed installation or portable rental type, minimum viewing distance, etc.
Q2: How do you ensure the quality of your LED display products?
Answer: We have professional R&D team and skilled quality control team with standard process to ensure quality products, we do 100% aging test and waterproof test before delivery. We provide 2 years warranty for LED screen.
Q3:How about your delivery time?
Answer: It takes 10 to 15 days after receiving the advance payment.
Q4: Can I print my logo on the LED screen?
Answer:Yes. Please send me the logo picture before we produce, and confirm the appearance with you after we produce the sample.
Q5. What are your payment terms and trade terms?
Answer: Payment terms: T/T 30% as deposit, 70% before delivery. After production, we will send you the pictures and videos of the products to confirm, meanwhile, you are welcome to come to the factory to inspect the goods.
Trade terms: EXW, FOB, CIF, DDP, DDU, will follow your requirements.
