P16 outdoor LED screen is mainly used to play outdoor commercial advertising video, the product consists of high brightness LED beads, can be used in outdoor all-weather, with high brightness, rainproof, snowproof, windproof, sandproof, low failure rate and other characteristics.
Best viewing distance ≥16M
Advantages of our outdoor full color LED display
High Quality LED
Gtseen's P16 Outdoor LED displays are made of high quality components, recommended to use Nationstar or Kinflight RGB LED beads, with very low failure rate and very slow display brightness degradation.
High brightness of display screen
You can see the picture clearly in the sunlight, the highest brightness is 8000CD/㎡, and the brightness can be customized according to your needs.
Very energy-saving display
Regular LED screen is 5V normal voltage, energy-saving LED screen is 2.8V/3.8V energy-saving voltage input, the average power consumption of energy-saving LED screen is less than 150w/㎡.
Provide a variety of display cases

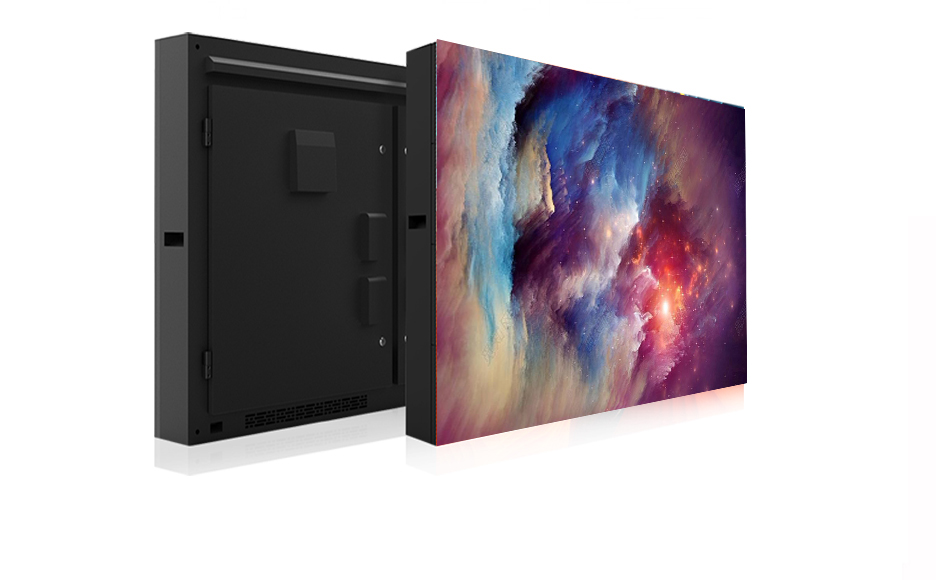

Single-layer iron box and fully sealed iron box are adopted.
The aluminum box is very light and thin. The module can be removed from the front. It has good heat dissipation and does not need air conditioning.
Large field of view
The outdoor LED display has a wide viewing angle of 170° to meet the needs of viewing at various angles.
Display with flame retardant capability
Flame retardant is added to the display material, which will not be burnt when it catches fire, preventing the display from catching fire and causing serious safety accidents.
Protection grade
Suitable for outdoor all-weather use.

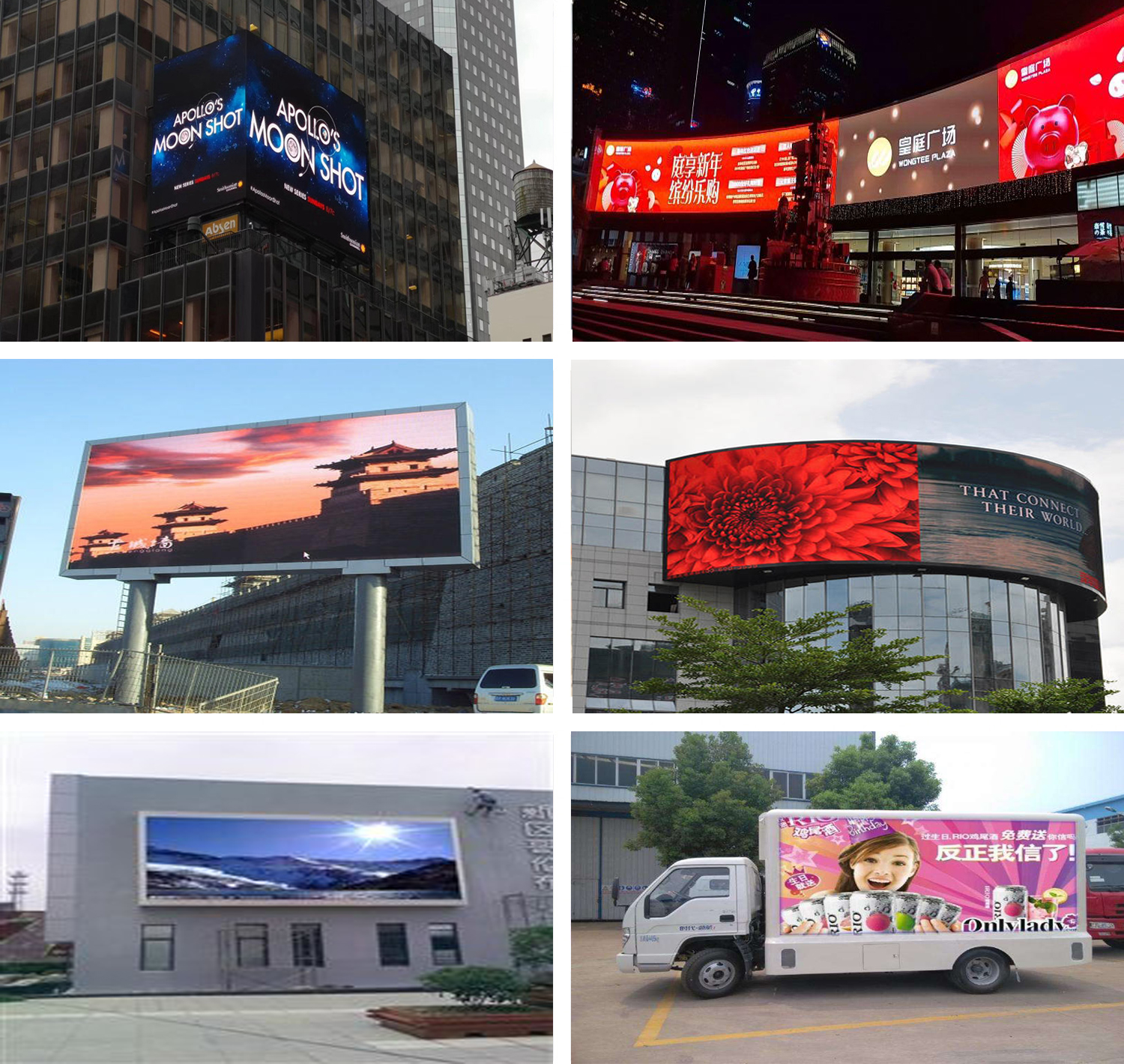

Application
p2.5 outdoor full-color LED screen with high pixel density, clear and delicate display, three-proof design, suitable for outdoor buildings, supermarkets, parks, stations and other outdoor display video playback occasions.
Product parameters
Pixel Configuration | SMD3535 |
Pixel Pitch（mm） | 16 |
| Minimum Viewing Distance(m) | ≥16 |
Pixel Density（point/ m2） | 3096 |
Module Resolution （W×H） | 32×32 |
Module Size （mm） | 256（W）×256（H） |
Module Weight（kg） | 0.6 |
Module Maximum power（W） | 50 |
Cabinet Size（W×H） | 4×4 |
Cabinet Density （W×H） | 128×128 |
Cabinet Combination（mm） | 1024（W）×1024（H）×120（D） |
Cabinet Area（m2） | 1.048 |
Cabinet Weight（kg） | 40 |
Cabinet Planeness（mm） | ≤0.2 |
| Cabinet material | Iron/Al |
Single Lamp Luminance Correction | Y |
Single Lamp Color Correction | Y |
Brightness（CD/㎡） | ≥6000（6500K） |
CCT（K） | 3200—9300 |
Viewing Angle（H/V） | 160/160 |
Luminous point Center Distance Deviation | <2.5％ |
B/CCT Uniformity | ≥98％ |
Contrast | 5000：1 |
Max. Power Consumption（W / m2） | 800 |
Middle Power Consumption（W / m2） | 150-250 |
Operation Power | AC90〜264 |
FPS（Hz） | 50＆60 |
LED Drive Method | 1/1s |
Gray | 65536 |
Refresh Frequency（Hz） | ≥1920 |
Color Depth | 14bit |
Video Playback Funct | 2KHD，4KHD |
Work T/ H（℃/ RH） | -20 – 60/10％-85％RH |
Store T/ H（℃/ RH） | -20 – 60/10％-85％RH |
Authentication | CCC，TUV-CE，FCC |
Reasons for choosing Gtseen
Our staff has 10 years of experience in the field of LED display manufacturing. We can produce high quality and reliable LED display products for you, and we can customize the products to meet your requirements. Perfect after-sales service, for each batch of LED display, provide 5% spare parts for your order replacement. Products have passed CE RoHs, FCC certification.
Professional production workshop, standard production process.
We have module and whole screen production capacity, the product manufacturing process is fully automated to ensure stable and reliable products.
Good packaging protection for long distance transportation.
Our exported displays are packed with foam surface and wooden box, or air box, and the packaging is randomly checked for vibration test before shipment to ensure the products are delivered to you safely.
Frequently Asked Questions
Q1. Are the products customizable?
Answer: Yes, we can customize our products according to customers' requirements, you just need to provide us with project details, such as exterior shape, size, for outdoor or indoor use, fixed installation or portable rental type, minimum viewing distance, etc.
Q2: How do you ensure the quality of your LED display products?
Answer: We have professional R&D team and skilled quality control team with standard process to ensure quality products, we do 100% aging test and waterproof test before delivery. We provide 2 years warranty for LED screen.
Q3:How about your delivery time?
Answer: It takes 10 to 15 days after receiving the advance payment.
Q4: Can I print my logo on the LED screen?
Answer:Yes. Please send me the logo picture before we produce, and confirm the appearance with you after we produce the sample.
Q5. What are your payment terms and trade terms?
Answer: Payment terms: T/T 30% as deposit, 70% before delivery. After production, we will send you the pictures and videos of the products to confirm, meanwhile, you are welcome to come to the factory to inspect the goods.
Trade terms: EXW, FOB, CIF, DDP, DDU, will follow your requirements.
