P2 Small Pixel Pitch LED Screen

P2 LED display with high pixel density (250,000 dots/m2) and clear video playback can replace LCD screen. It is very easy to install, and there is no limitation on the length and width of the display, which is suitable for various occasions.

Description

P2 small pitch LED display, is a high resolution display model, 2 meters away from the viewing screen clear.

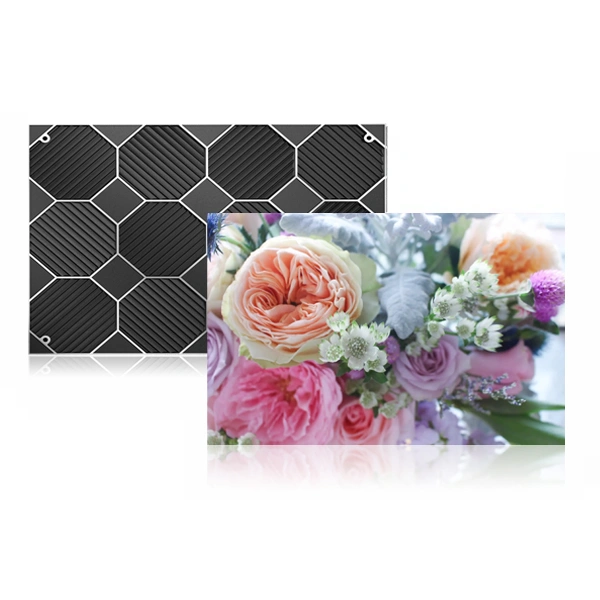

The P2 small-pitch screen adopts a die-cast aluminum box, which is flat and has no joints.

Box size:640MMX480MM&600MMX337.5MM.


Very light screen, very easy to install, very little load on the wall, can be installed on a variety of walls.

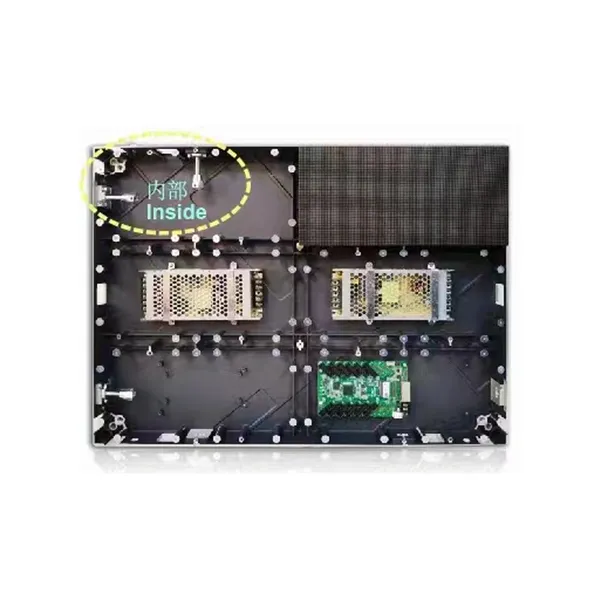

The P2 display module is fixed on the die-cast aluminum case by magnet, and the vacuum suction cup is used to remove and replace and repair.


The P2 display length and height can be spliced without restrictions,easily reaching up to 2k to 8k HD resolution, suitable for various places.


Gtseen's P2 small pitch LED displays are made of high quality components with recommended Nationstar or Kinflight RGB LED beads, which have very low failure rates and very low display light decay.


Adopt high refresh driver IC, refresh rate of 3840Hz, shooting display screen, no scan line.


Color 14BIT ,grayscale 65536, better viewing effect.


The small pitch LED display has a wide viewing angle of 170° to meet the needs of viewing at various angles.


Application

Small pitch LED displays are mainly used indoors, where the pursuit of high definition is the main occasion, like enterprise exhibition halls, big data platforms, command and control centers, etc.


Product parameters

Pixel Configuration

SMD1515

SMD1515

Pixel Pitch(mm)

22
Minimum Viewing Distance(m)≥2≥2

Pixel Density(point/ m2)

250,000250,000

Module Resolution (W×H)

160x80

128x64

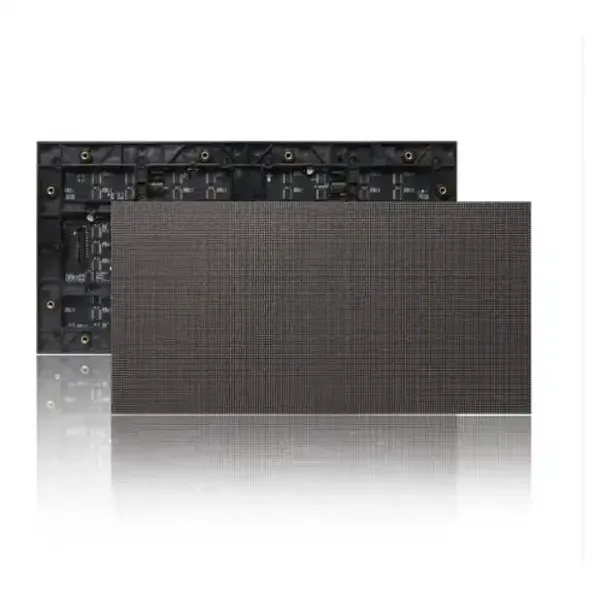

Module Size (mm)

320(W)×160(H)

256(W)×128(H)

Module Weight(kg)

0.3

0.35

Module Maximum power(W)

40

30

Cabinet Size(W×H)

2×3

2×2

Cabinet Density (W×H)

320x240

256x256

Cabinet Combination(mm)

640(W)×480(H)×80(D)

512(W)×512(H)×60(D)

Cabinet Weight(kg)

8

6
Cabinet materialDie-cast aluminumDie-cast aluminum

Brightness(CD/㎡)

800(6500K)

800(6500K)

CCT(K)

3200—9300

3200—9300

Viewing Angle(H/V)

170/170

170/170

Contrast

9000:1

9000:1

Max. Power Consumption(W / m2)

800

800

Middle Power Consumption(W / m2)

AC90〜264

AC90〜264

Voltage(v)

AC90〜264

AC90〜264

FPS(Hz)

50&60

50&60

LED Drive Method

1/40s

1/32s

Gray

65536

65536

Refresh Frequency(Hz)

≥3840

≥3840

Color Depth

14bit

14bit

Work T/ H(℃/ RH)

-20 – 60/10%-85%RH

-20 – 60/10%-85%RH

Store T/ H(℃/ RH)

-20 – 60/10%-85%RH

-20 – 60/10%-85%RH

Authentication

CCC,TUV-CE,FCC

CCC,TUV-CE,FCC


Reasons for choosing Gtseen

Our staff has 10 years of experience in the field of LED display manufacturing. We can produce high quality and reliable LED display products for you, and we can customize the products to meet your requirements. Perfect after-sales service, for each batch of LED display, provide 5% spare parts for your order replacement. Products have passed CE RoHs, FCC certification.

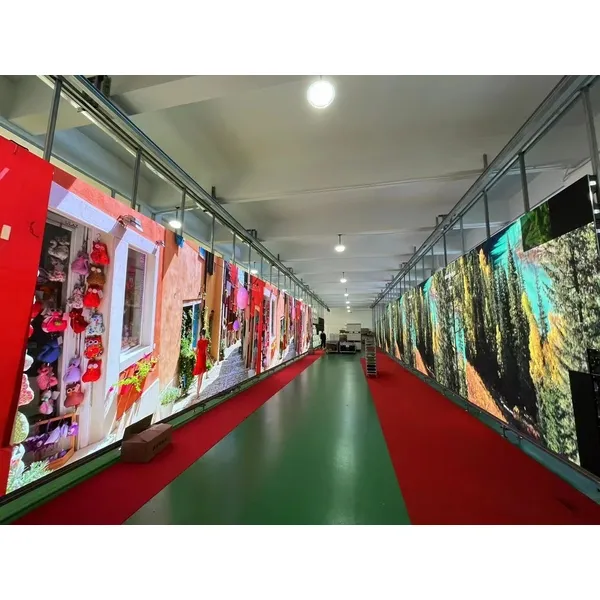

Professional production workshop, standard production process.

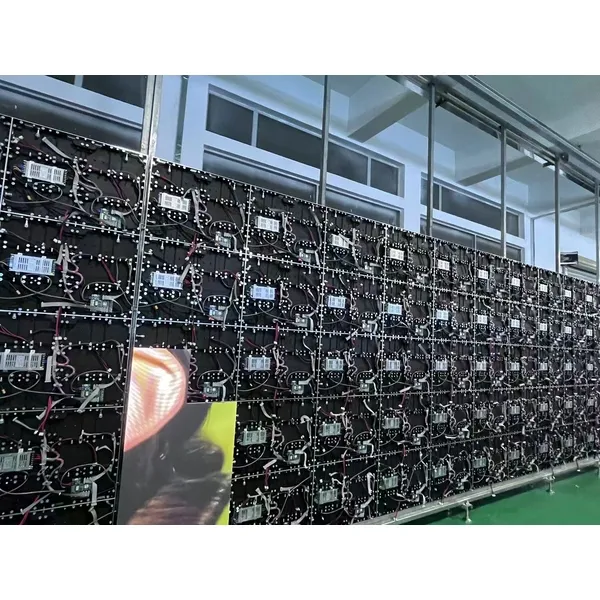

We have module and whole screen production capacity, the product manufacturing process is fully automated to ensure stable and reliable products.


Good packaging protection for long distance transportation.

Our exported displays are packed with foam surface and wooden box, or air box, and the packaging is randomly checked for vibration test before shipment to ensure the products are delivered to you safely.







Frequently Asked Questions


Q1. Are the products customizable?

Answer: Yes, we can customize our products according to customers' requirements, you just need to provide us with project details, such as exterior shape, size, for outdoor or indoor use, fixed installation or portable rental type, minimum viewing distance, etc.


Q2: How do you ensure the quality of your LED display products?

Answer: We have professional R&D team and skilled quality control team with standard process to ensure quality products, we do 100% aging test and waterproof test before delivery. We provide 2 years warranty for LED screen.


Q3:How about your delivery time?

Answer: It takes 10 to 15 days after receiving the advance payment.


Q4: Can I print my logo on the LED screen?

Answer:Yes. Please send me the logo picture before we produce, and confirm the appearance with you after we produce the sample.


Q5. What are your payment terms and trade terms?

Answer: Payment terms: T/T 30% as deposit, 70% before delivery. After production, we will send you the pictures and videos of the products to confirm, meanwhile, you are welcome to come to the factory to inspect the goods.

Trade terms: EXW, FOB, CIF, DDP, DDU, will follow your requirements.
