P4.81 Indoor LED Rental Screen

P4.81 Indoor LED rental screen is 43,264 points per square meter of pixels.,is a kind of LED display that can be quickly installed and disassembled for transportation, using die-casting aluminum case structure, air box transportation, for stage performances, cultural and artistic activities and other temporary use. It is suitable for large area rental as well as fixed installation applications.


Description

P4.81 rental LED screen has 43,264 pixel points in one square, the best viewing distance ≥ 2.5M, mainly used for indoor performances, conferences, exhibitions, weddings, groundbreaking ceremonies, opening ceremonies, promotions and other activities of the stage background structure, lighting and sound equipment and special effects equipment rental place. It is composed of marked die-cast aluminum box, which is very quick to install and dismantle.


P4.81 rental LED screen size: 500MM*500MM and 1000MM*500MM.

P4.81 rental LED screenDie-casting aluminum shell structure, with power aviation interface and network network interface.

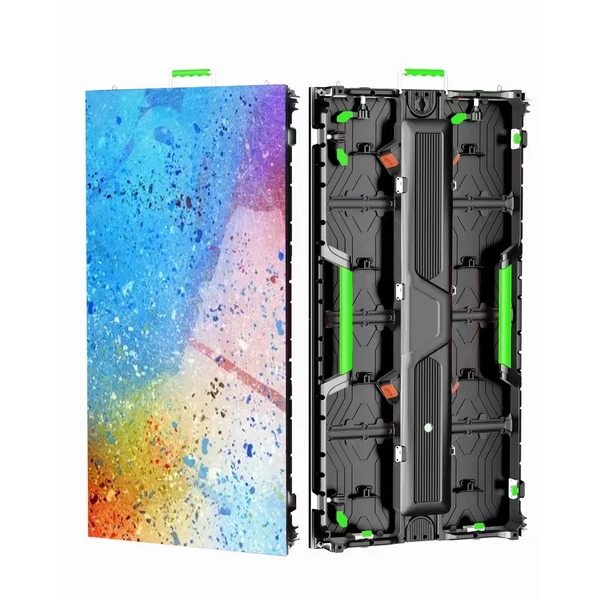

Overall appearance未标题-2.jpg

Die-casting aluminum case structure, can be quickly assembled and disassembled, easy to carry, module replacement from the case is also very convenient. The signal light will show the working status of the receive card.

压铸铝3.jpgP4.81 Indoor LED rental screen assembly and protection details chart.压铸铝6.jpg

Gtseen's P2.976 Indoor LED rental screens are made of high quality components with recommended Nationstar or Kinflight RGB LED beads, which have very low failure rates and very low display light decay.


Adopt high refresh driver IC, refresh rate of 3840Hz, shooting display screen, no scan line, color 14BIT grayscale, better viewing effect.


Color 14BIT ,grayscale 65536, better viewing effect.

P4.81 rental LED screen has a wide viewing angle of 170°to meet the needs of viewing at various angles.


LED rental screen installation method



Product parameters

Pixel Configuration

SMD2020

Pixel Pitch(mm)

4.81

Minimum Viewing Distance(m)≥5

Pixel Density(point/ m2)

43,264

Module Resolution (W×H)

52×52

Module Size (mm)

250(W)×250(H)

Module Weight(kg)

0.6

Module Maximum power(W)

50

Cabinet Size(W×H)

4×2

Cabinet Density (W×H)

208×104

Cabinet Combination(mm)

1000(W)×500(H)×120(D)

Cabinet Area(m2)

0.5

Cabinet Weight(kg)

10

Brightness(CD/㎡)

≥800(6500K)

CCT(K)

3200—9300

Viewing Angle(H/V)

160/160

Luminous point Center Distance Deviation

<2.5%

B/CCT Uniformity

≥98%

Contrast

9000:1

Max. Power Consumption(W / m2)

800

Middle Power Consumption(W / m2)

150-250

Voltage(V)

AC90〜264

FPS(Hz)

50&60

LED Drive Method

1/13S

Gray

65536

Refresh Frequency(Hz)

≥3840

Color Depth

14bit

Video Playback Funct

2KHD,4KHD

Work T/ H(℃/ RH)

-20 – 60/10%-85%RH

Store T/ H(℃/ RH)

-20 – 60/10%-85%RH

Authentication

CCC,TUV-CE,FCC

Application


Reasons for choosing Gtseen

Our staff has 10 years of experience in the field of LED display manufacturing. We can produce high quality and reliable LED display products for you, and we can customize the products to meet your requirements. Perfect after-sales service, for each batch of LED display, provide 5% spare parts for your order replacement. Products have passed CE RoHs, FCC certification.

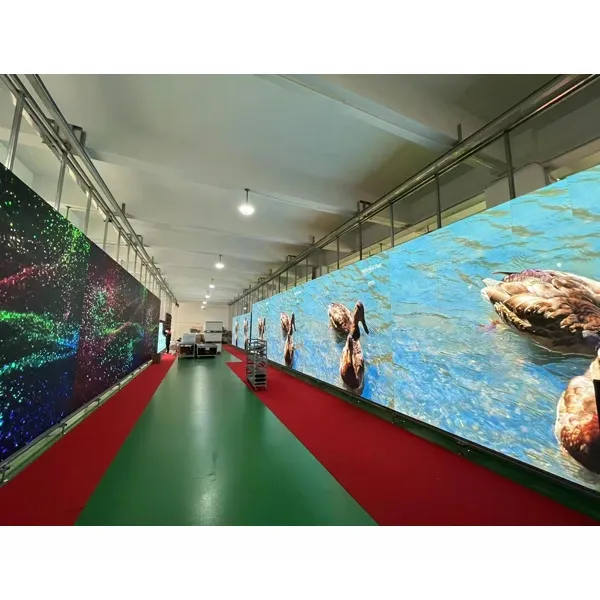

Professional production workshop, standard production process.

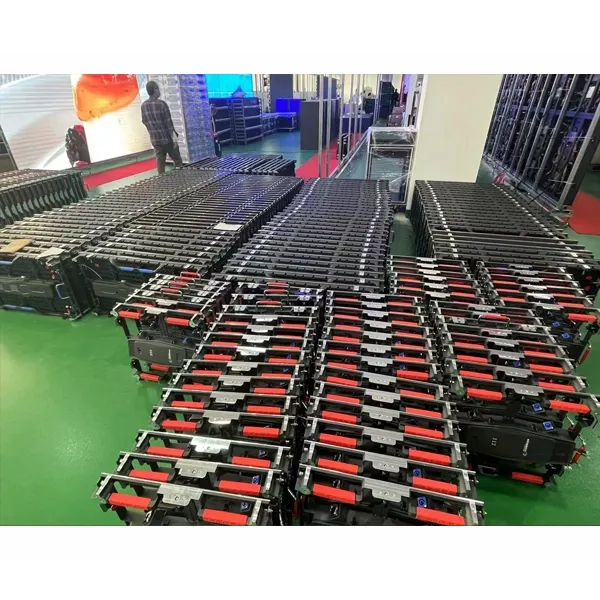

We have module and whole screen production capacity, the product manufacturing process is fully automated to ensure stable and reliable products.


Good packaging protection for long distance transportation.

Our exported displays are packed with foam surface and wooden box, or air box, and the packaging is randomly checked for vibration test before shipment to ensure the products are delivered to you safely.



Frequently Asked Questions


Q1. Are the products customizable?

Answer: Yes, we can customize our products according to customers' requirements, you just need to provide us with project details, such as exterior shape, size, for outdoor or indoor use, fixed installation or portable rental type, minimum viewing distance, etc.


Q2: How do you ensure the quality of your LED display products?

Answer: We have professional R&D team and skilled quality control team with standard process to ensure quality products, we do 100% aging test and waterproof test before delivery. We provide 2 years warranty for LED screen.


Q3:How about your delivery time?

Answer: It takes 10 to 15 days after receiving the advance payment.


Q4: Can I print my logo on the LED screen?

Answer:Yes. Please send me the logo picture before we produce, and confirm the appearance with you after we produce the sample.


Q5. What are your payment terms and trade terms?

Answer: Payment terms: T/T 30% as deposit, 70% before delivery. After production, we will send you the pictures and videos of the products to confirm, meanwhile, you are welcome to come to the factory to inspect the goods.

Trade terms: EXW, FOB, CIF, DDP, DDU, will follow your requirements.
