LED outdoor transparent screen

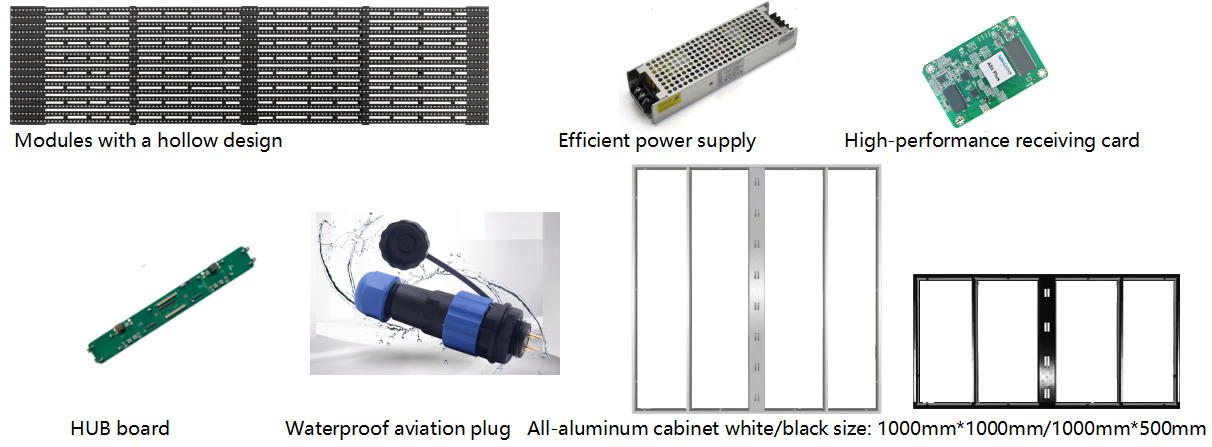

Components of LED Outdoor Transparent Screens：
Using hollow PCB design, the whole screen like LED lights composed of small shutters, thin and light and transparent, can be disassembled before and after the module, easy maintenance.
The world's first outdoor co-cathode energy-saving LED transparent cold screen
The common cathode series products adopt precise power supply control technology, based on the different photoelectric characteristics of LED red, green and blue primary colors, with dual-voltage control IC, exclusive private mode scheme, LED lamp beads and drive circuits accurately distribute different voltages, so that the power consumption of the product is more than 40% energy-saving compared with similar products on the market, the surface temperature of the screen body drops by more than 15°, the failure rate is lower, and the service life is longer.
300㎡ outdoor energy-saving LED transparent cold screen, saving 400,000 kWh of electricity in 3 years
High brightness
Standard Nationstar lamp beads, stable quality, high brightness, low light decay rate. The common yin energy-saving series adopts common yin lamp beads, which is more energy-saving and has higher brightness. Outdoor LED transparent display, brightness up to 10000CD/㎡.

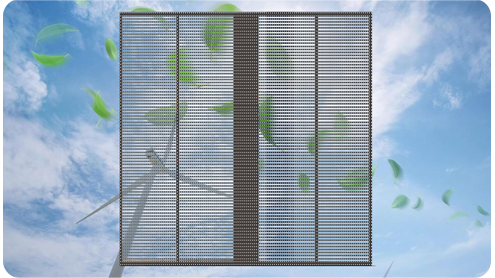

Light transmission and wind resistance
The light transmittance is up to more than 70%,which does not affect the lighting of the glass curtain wall.Grille design, no wind block , strong wind resistance, higher safety.

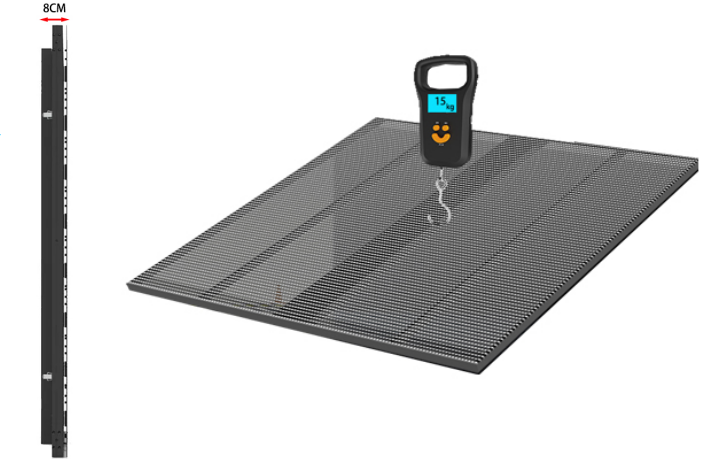

Light and thin
LED transparent screen weighs only 15 kilograms per square, the installation does not require much to bear, widely applicable to a variety of occasions.
Good stability
Anti-salt spray, anti-corrosion,High and low temperature resistantworking environment, Operating temperature: -50°-70°,Natural heat dissipation, no need for air conditioning.
IP66 triple-proof grade design
Gtseen research and development of outdoor LED transparent screen, module front and back potted, fully sealed power box, waterproof air plug are waterproof design, IP66 level waterproof ability, suitable for outdoor use.
With a face mask
Protect the lamp beads during transportation and installation, and prevent bumps. Equipped with a mask, it does not reflect sunlight, and the display screen is inky. Good consistency, protection module, delay the aging of LEDs and circuit boards, reduce the failure rate, and prolong the life.

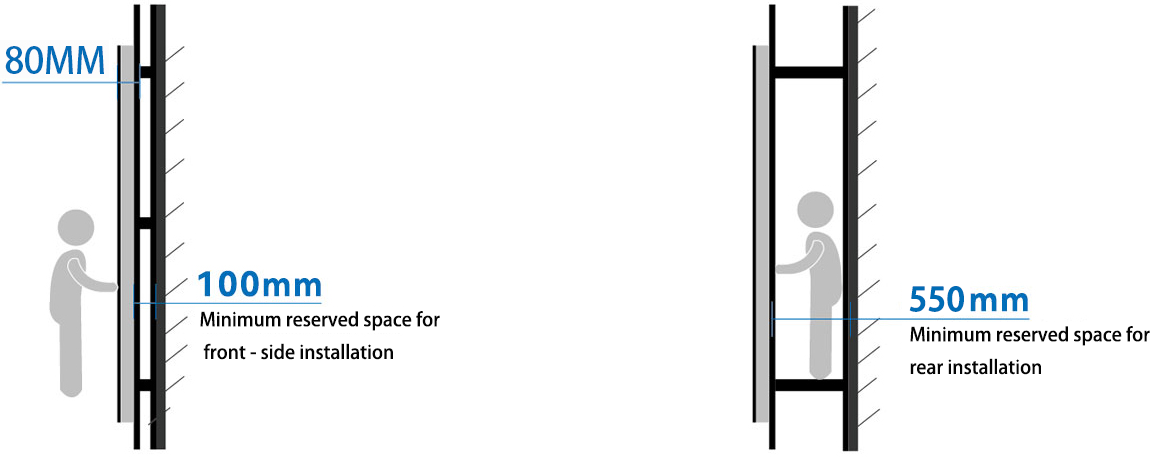

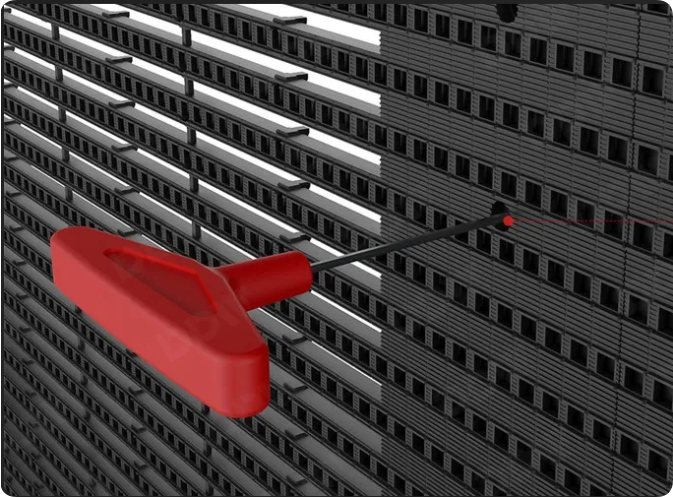

Support front/back maintenance
The outdoor LED transparent grille screen can be maintained from front and back, and the operation is convenient.

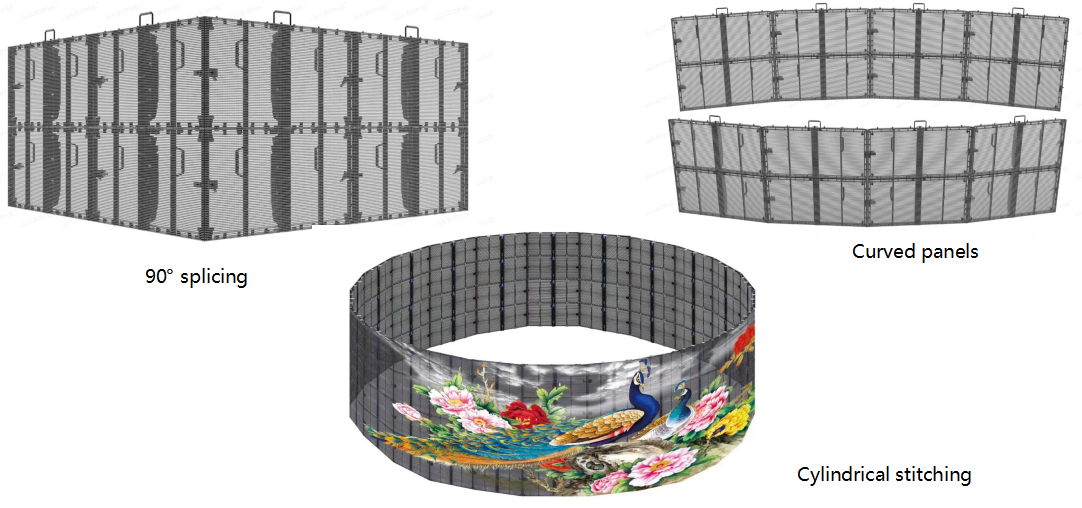

Can be assembled into square, arc, aid-shaped transparent screen
Can be customized according to the actual needs of customers screen size, can also be made into a cylinder, circle, Rubik's Cube transparent screen and other creative LED display, welcome to consult!
The steel structure is simple to build
The outdoor LED transparent screen can be installed in the front and behind, and the steel structure does not need to be edging.

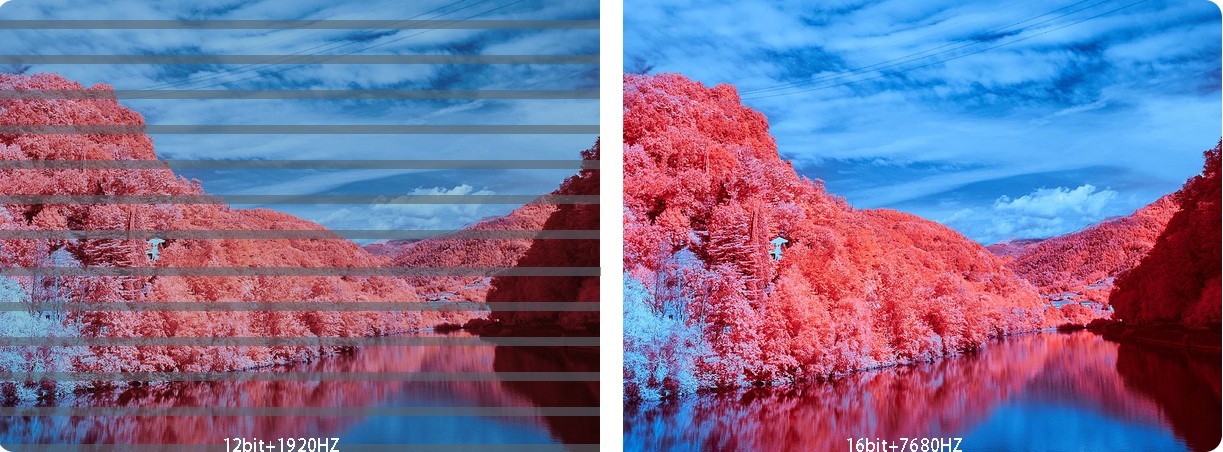

Hingh refresh high grayscale
High gray level, strong sense of hierarchy, no loss of details, 7680Hz ultra-high refresh, no drag on the display screen Even when playing fast-movingcontent, there is no flickering, The image processing is smooth, stable and delicate, and the visual experience is better.

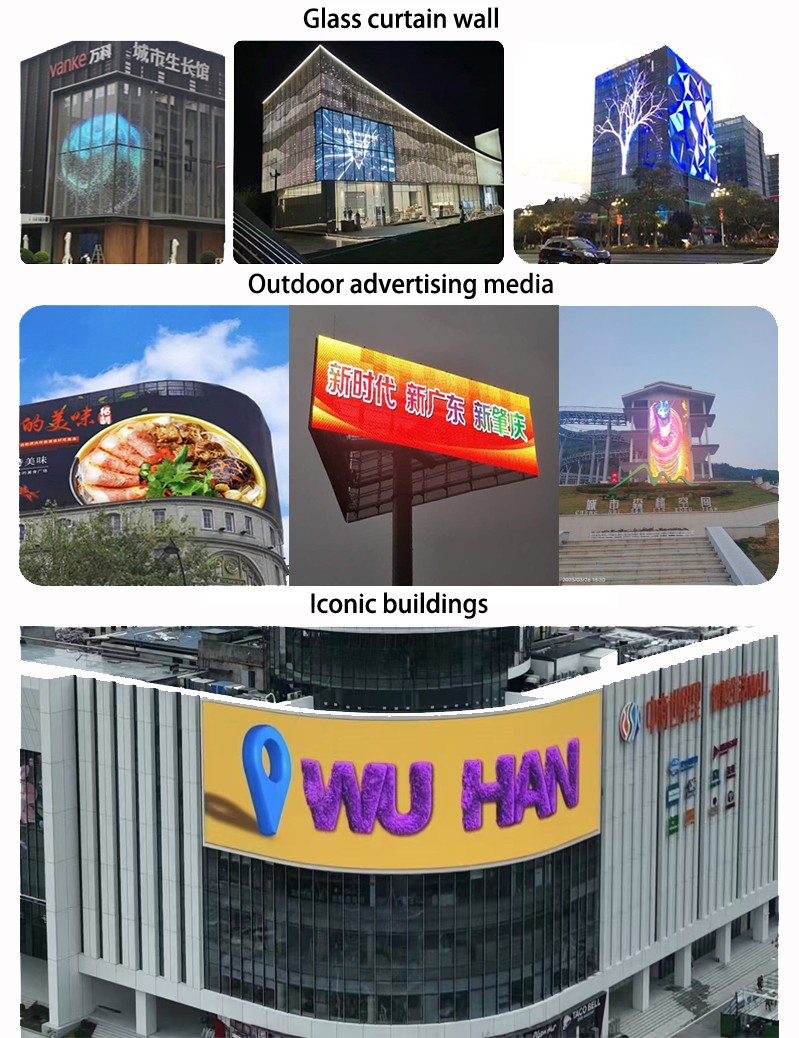

Appliance

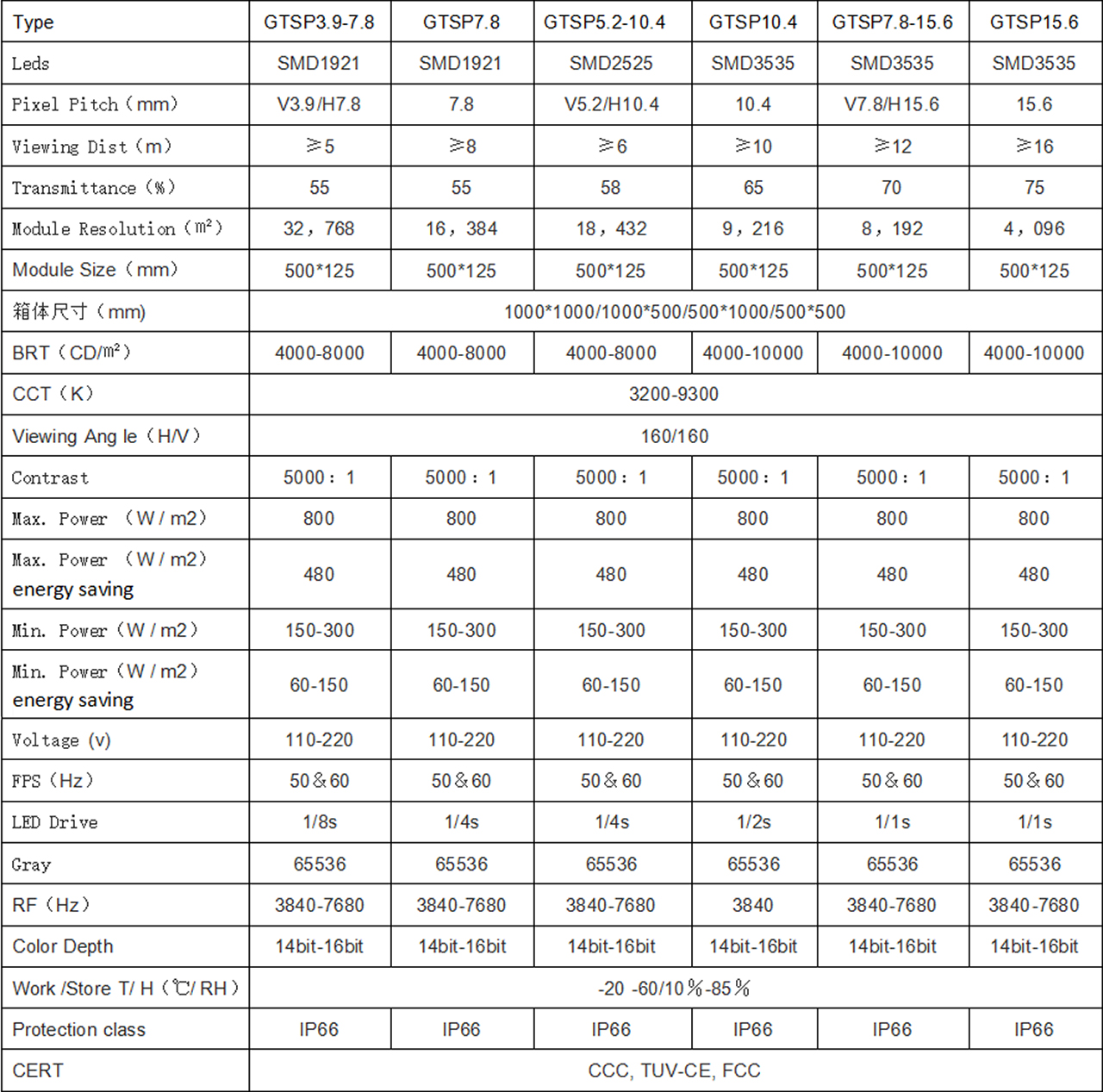

Product Parameters
Reasons for choosing Gtseen
Our staff has 10 years of experience in the field of LED display manufacturing. We can produce high quality and reliable LED display products for you, and we can customize the products to meet your requirements. Perfect after-sales service, for each batch of LED display, provide 5% spare parts for your order replacement. Products have passed CE RoHs, FCC certification.

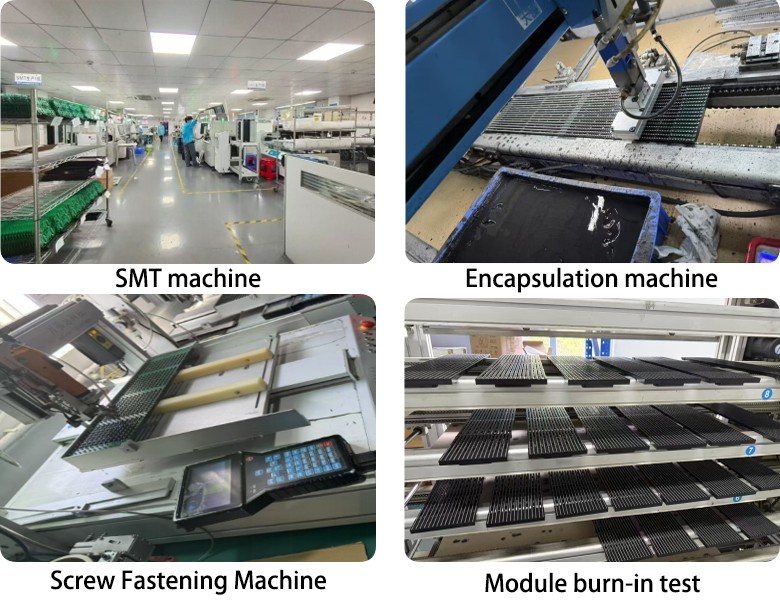

Professional production workshop, standard production process
We have module and whole screen production capacity, the product manufacturing process is fully automated to ensure stable and reliable products.

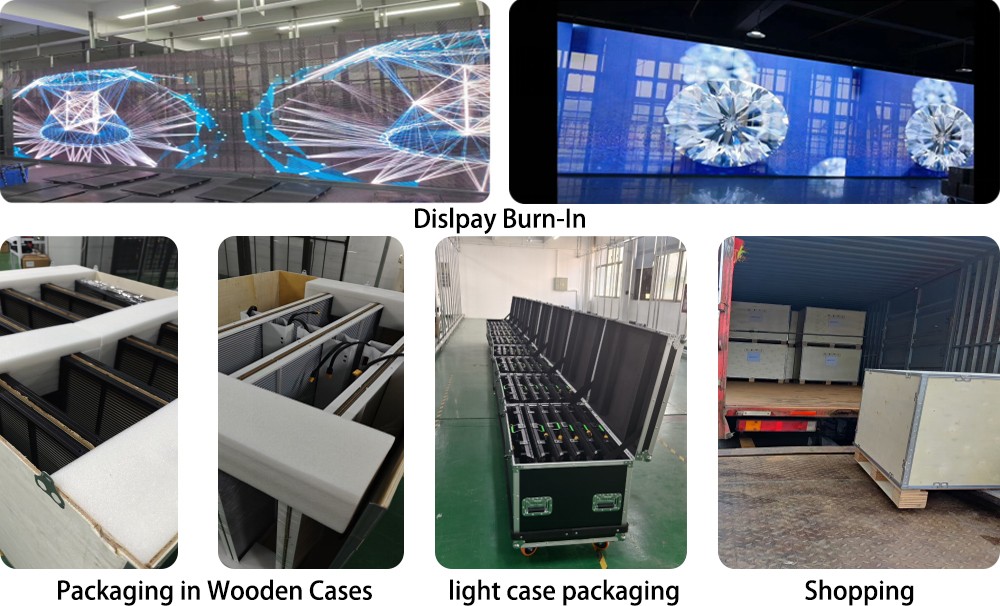

Good packaging protection for long distance transportation
Our exported displays are packed with foam surface and wooden box, or air box, and the packaging is randomly checked for vibration test before shipment to ensure the products are delivered to you safely.
Frequently Asked Questions
Q1. Are the products customizable?
Answer: Yes, we can customize our products according to customers' requirements, you just need to provide us with project details, such as exterior shape, size, for outdoor or indoor use, fixed installation or portable rental type, minimum viewing distance, etc.
Q2: How do you ensure the quality of your LED display products?
Answer: We have professional R&D team and skilled quality control team with standard process to ensure quality products, we do 100% aging test and waterproof test before delivery. We provide 2 years warranty for LED screen.
Q3:How about your delivery time?
Answer: It takes 10 to 15 days after receiving the advance payment.
Q4: Can I print my logo on the LED screen?
Answer:Yes. Please send me the logo picture before we produce, and confirm the appearance with you after we produce the sample.
Q5. What are your payment terms and trade terms?
Answer: Payment terms: T/T 30% as deposit, 70% before delivery. After production, we will send you the pictures and videos of the products to confirm, meanwhile, you are welcome to come to the factory to inspect the goods.
Trade terms: EXW, FOB, CIF, DDP, DDU, will follow your requirements.
